Setting Jumpers on the NEXYS 4 Board

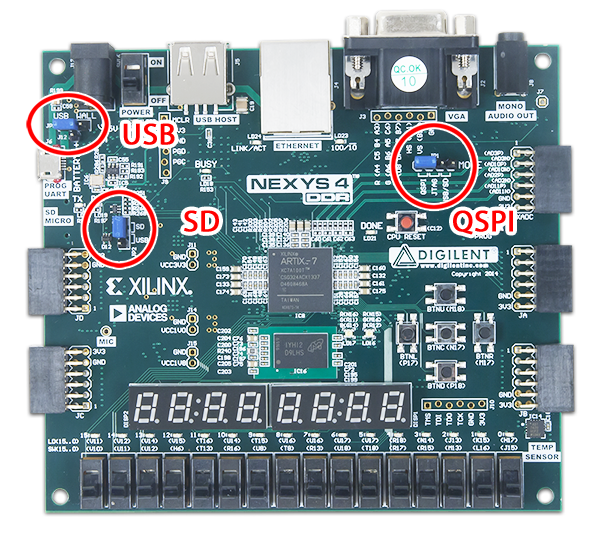

This is how the blue jumpers should be set on your board. Do not turn on the board until you verify that the jumpers are set correctly.
